Inhomogeneous-strain-induced magnetic vortex cluster in one-dimensional manganite wire

Topologically stabilized spin structures at the nanoscale magnets, including domain walls, vortices and skyrmions, have recently received much attention. Among the nanoscale non-linear spin textures, vortex is a typical and well-known magnetic domain in dimensionally confined systems with a symmetry determined by its polarity and chirality. Because of its stability at the nanoscale and its robust control on nanosecond timescales, the magnetic vortex can be a promising candidate for next-generation magnetic data-storage devices [1].

Recently, emergent phenomena were discovered in manganites with strong electron correlation, such as the nonvolatile tunable magnetoresistance [2], ultralow-current-induced domain-wall motion [3], anisotropic resistance switching [4], topological Hall effect [5] and the high-frequency spin-wave propagation [6] etc., which are strongly affected by their mesoscopic domains. Magnetic domains in manganites are sensitive to various external stimuli such as strain, size, electric/magnetic fields etc., making them a model system to manipulate their spin textures (e.g. vortex, chiral domain walls). However, magnetic vortices were usually observed in spatially confined nanostructures such as the square-shaped, triangle-shaped, and disc-shaped nano-islands, and the shape-induced magnetic anisotropy is assumed to be the major mechanism for the formation of the magnetic vortex.

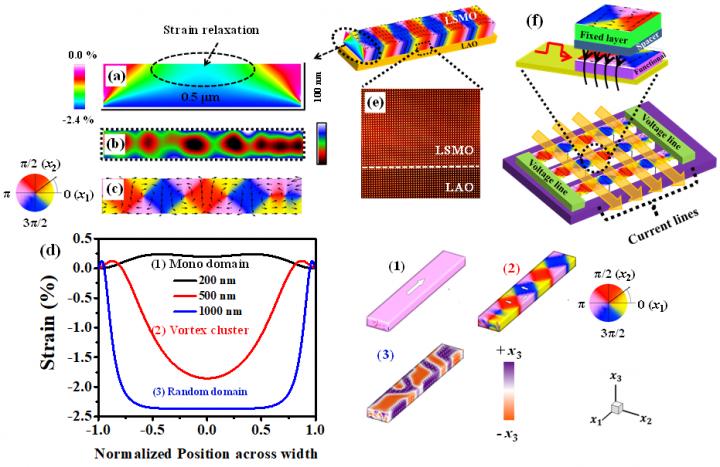

Using variable-temperature magnetic force microscopy (VT-MFM) and in-situ magnetoresistance measurements, Chinese researchers in collaboration with German scientists discover that magnetic vortex clusters in epitaxial LSMO structure can be stabilized by artificially engineering its strain state. Phase-field modeling further supports that the vortex state in this one-dimensional manganite originate from the inhomogeneous strain. Enhancement of the uniaxial strain relaxation-induced magnetic anisotropy in wires and its competition with the shape-induced anisotropies plays an important role in stabilizing the flux closure spin structure. This work offers a new strategy to build up emergent spin textures in strongly correlated magnets and may trigger new designs for magnetoelectronic devices.

###

This work was financially supported by the National Key Research and Development Program of China (2016YFA0302300) and the Beijing Natural Science Foundation under contract No. Z190008 and National Natural Science Foundation of China (Grant No. 11974052 and 11474024). J. X. acknowledges the beamline 1W1A of the Beijing Synchrotron Radiation Facility. X. W. acknowledges the National Natural Science Foundation of China (Grant No. 11604011) and Beijing Institute of Technology Research Fund Program for Young Scholars. J. W. acknowledges National Natural Science Foundation of China (Grant No. 11672264, 11621062). The group in Mainz acknowledges support by the German Research Foundation DFG SFB TRR173 Spin+X, project KL1811/18 and the Graduate School of Excellence Materials Science in Mainz (GSC266). The work in Peking University was supported by the National Key R&D Program of China (2016YFA0300804), the National Natural Science Foundation of China (Grant Nos. 11974023, 51672007), the Key R&D Program of Guangdong Province (2018B030327001, 2018B010109009). P.G acknowledges Electron Microscopy Laboratory of Peking University for the use of Cs corrected electron microscope.

[1] Shinjo, T., et al., “Magnetic vortex core observation in circular dots of permalloy”, Science 289, 930 (2000).

[2] Yang, W., et al., “Achieving large and nonvolatile tunable magnetoresistance in organic spin valves using electronic phase separated manganites”, Nature Communications 10, 3877 (2019).

[3] Wang, J., et al., “Magnetic domain-wall motion twisted by nanoscale probe-induced spin transfer”, Physical Review B 90, 224407 (2014).

[4] Wang, X., et al., “Anisotropic resistance switching in hexagonal manganites”, Physical Review B 99, 054106 (2019).

[5] Vistoli, L., et al. “Giant topological Hall effect in correlated oxide thin films”, Nature Physics 15, 67 (2019).

[6] Liu, C., et al., “Current-controlled propagation of spin waves in antiparallel, coupled domains”, Nature Nanotechnology 14, 691 (2019).

Iftikhar Ahmed Malik#, Houbing Huang#, Yu Wang#, Xueyun Wang, Cui Xiao, Yuanwei Sun, Rizwan Ullah, Yuelin Zhang, Jing Wang, Muhammad Abdullah Malik, Irfan Ahmed, Changmin Xiong*, Simone Finizio, Mathias Kläui, Peng Gao, Jie Wang* and Jinxing Zhang*, “Inhomogeneous-strain-induced magnetic vortex cluster in one-dimensional manganite wire”, Science Bulletin, 2019, doi: 10.1016/j.scib.2019.11.025

https://www.sciencedirect.com/science/article/pii/S2095927319306814
